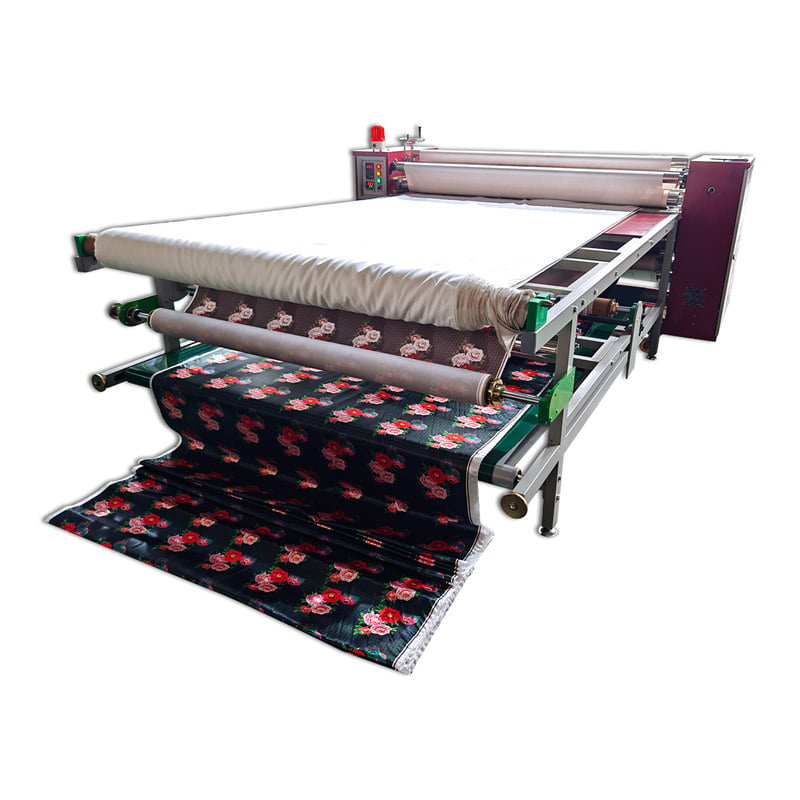

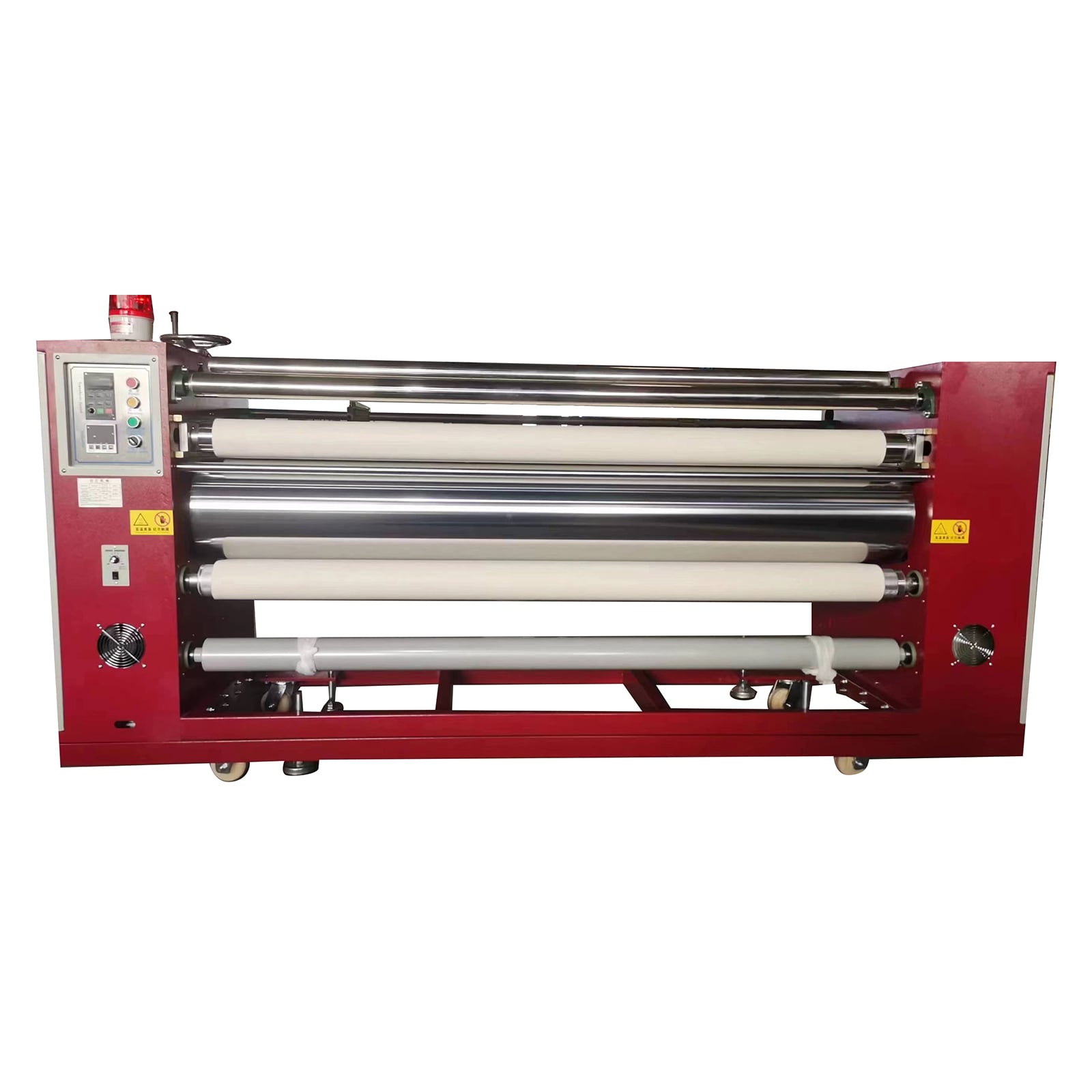

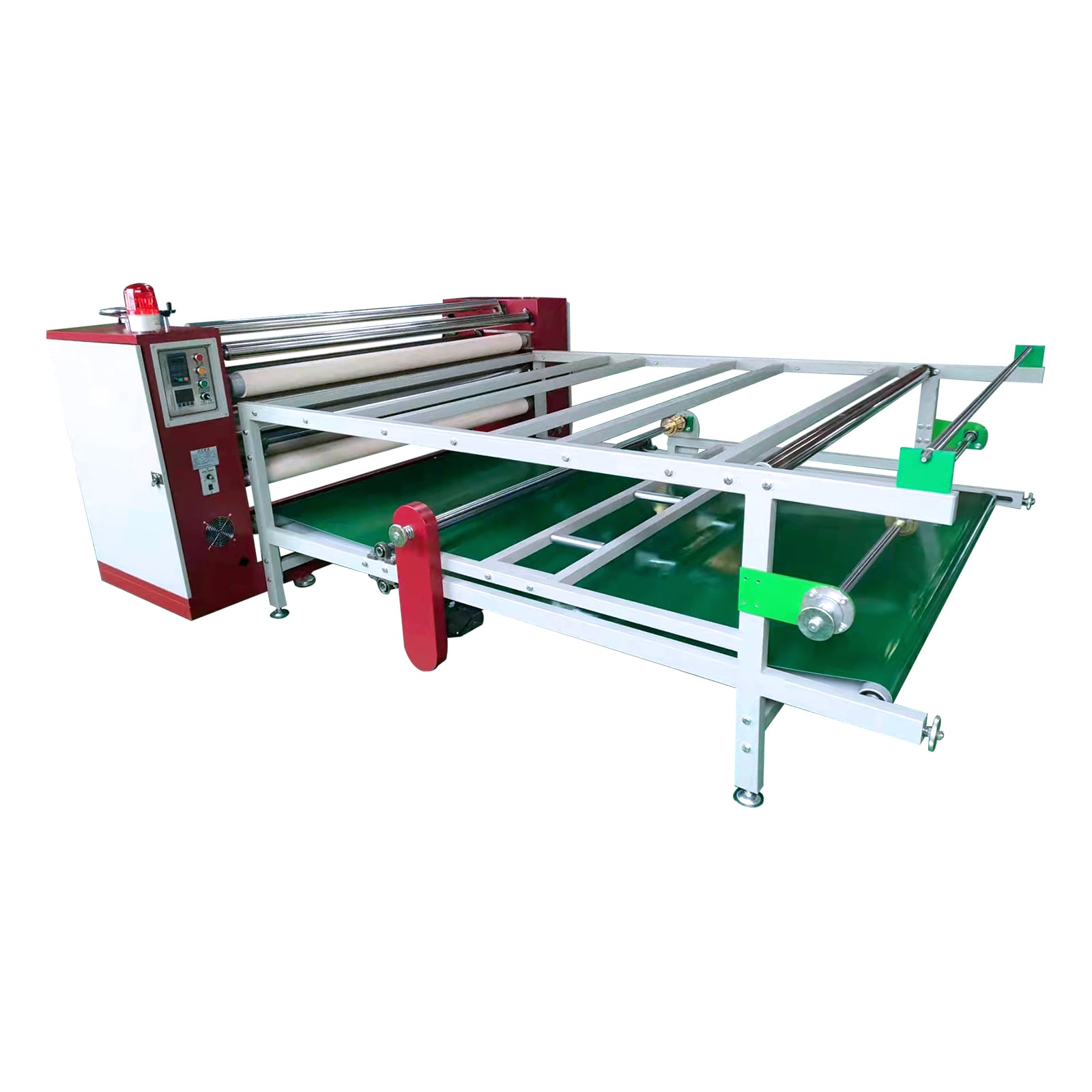

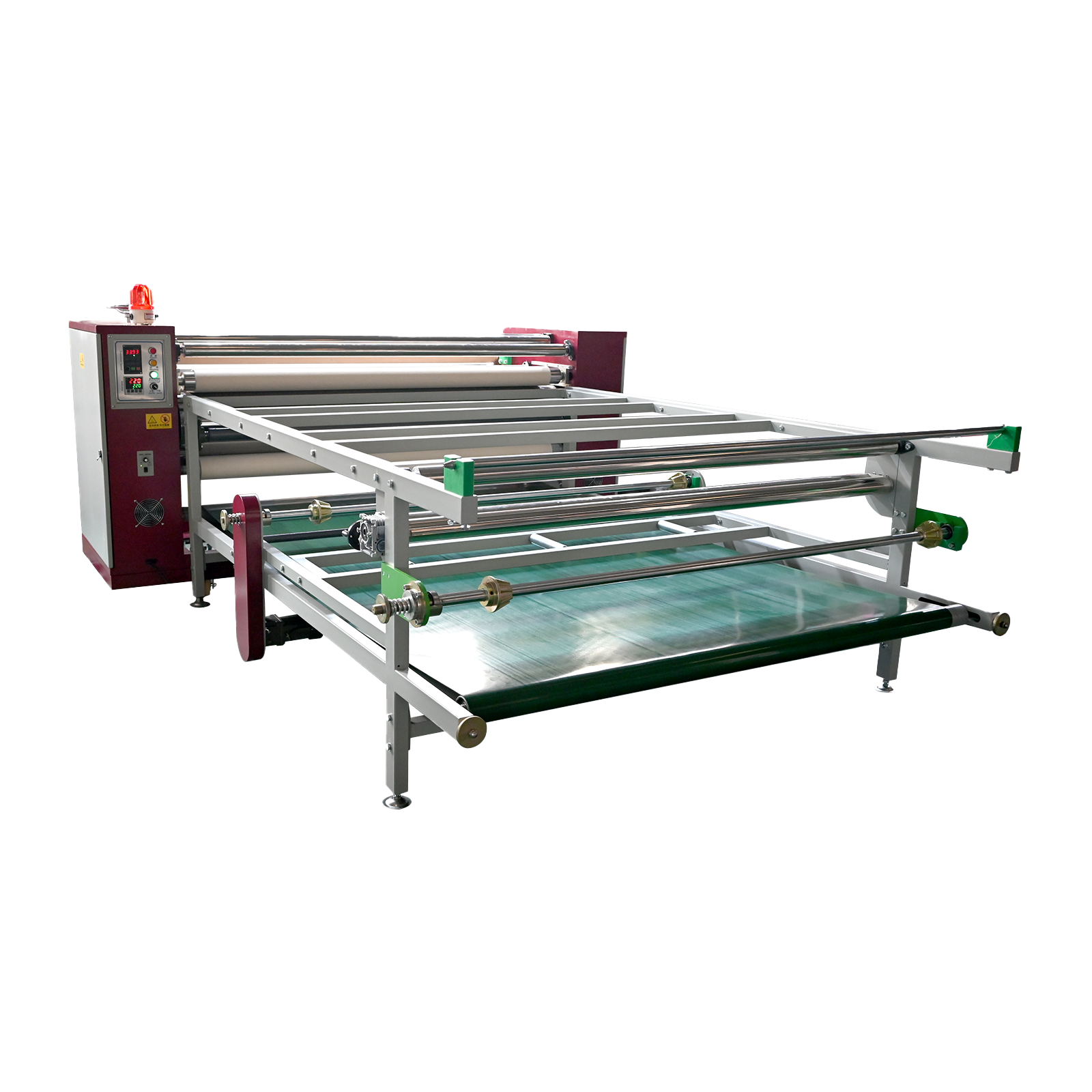

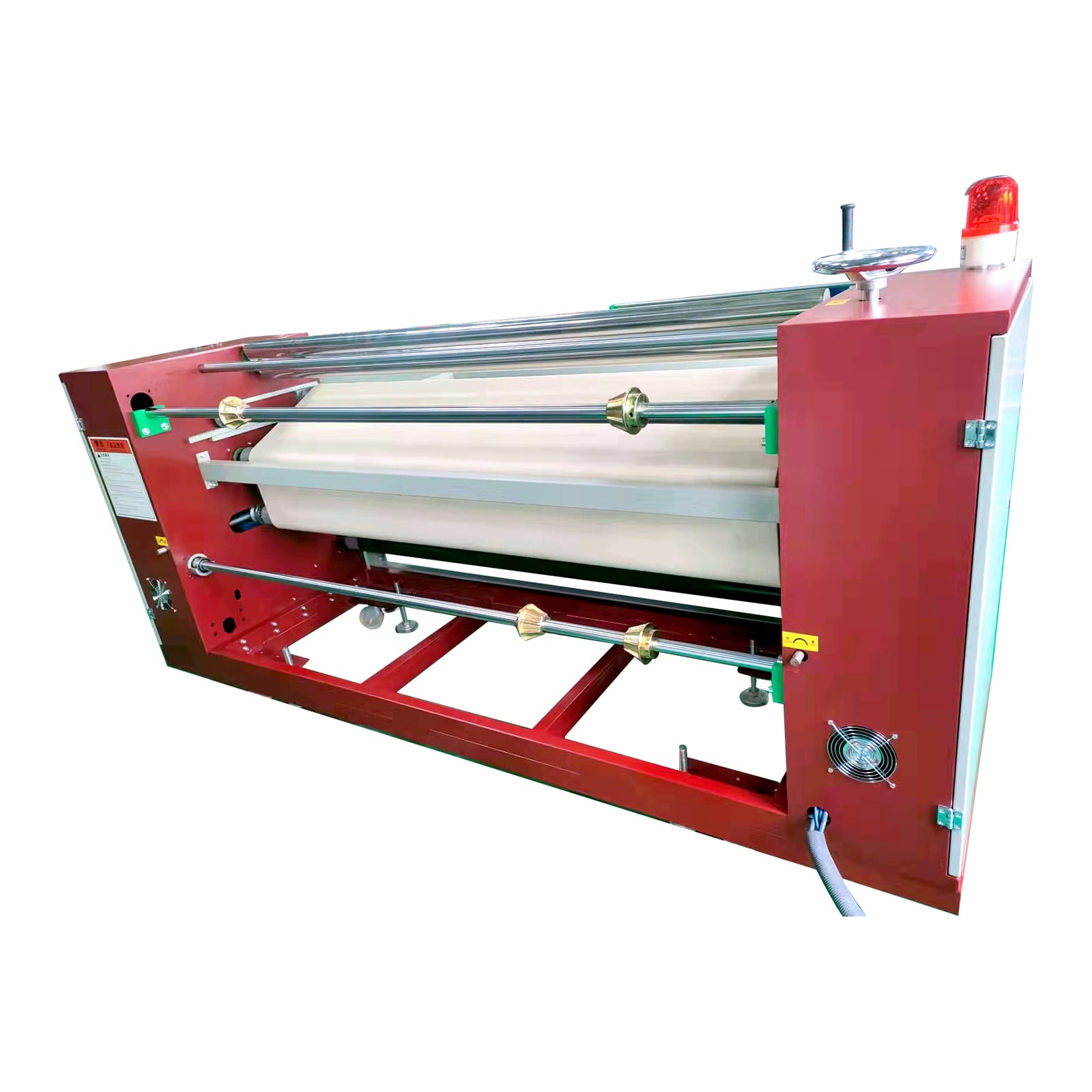

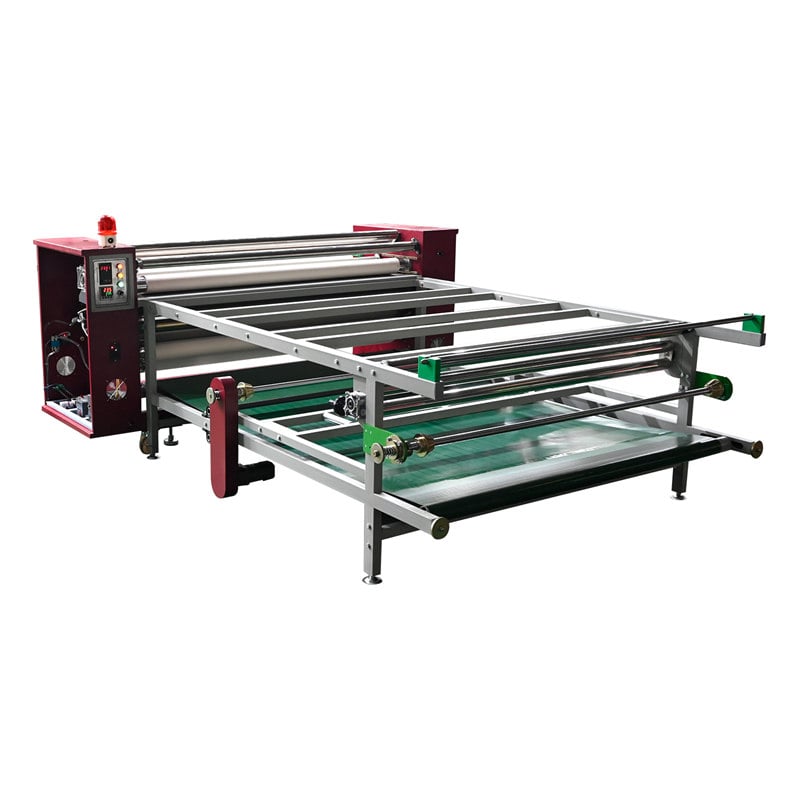

Oil type Heat Transfer Machine

Specifications

Model：YQ-BC270
Machine size: length3300* width 2050 * height 1350mm/length3300* width 2550 * height 1350 , heating method: High Temperature Resistance Conducting Oil, number of electric heating tubes: 9pcs, roller diameter 200mm, Roller Drum*Width:1200/1700mm roller surface: Teflon coating, voltage: 3-Phase 4Line 380,total power: 11/16kw, speed: 50-60 m/h, temperature range: 0-299 degrees, blanket width 1250/1750mm, transfer width: 1200/1700mm, Putting Device:3(Fabric/sublimation Paper/Protective Paper Putting),  Collecting Device: 2(Finished Sublimation Paper/Protective paper Rewinding), Blanket adjustment form: manual adjustment,platform total size: length 2600 * width 1850 * height 920mm,box packing size: length 2658 * 962 * 1616mm, Gross weight: 800/1000kg

Advantages

( 1 ) Excellent picture quality.

High resolution:

The printed images and text have clear and sharp edges, rich details, and can present both fine patterns and tiny text clearly, meeting the high quality requirements of users.

High color reproduction:

Accurately reproducing the colors of the original image, with high color saturation and appropriate contrast, the printed image is vivid and realistic in color, giving a strong visual impact.

Delicate color transition:

When printing gradient colors or images with rich color tone layers, it can avoid color discontinuity or stripe phenomenon, make color transition natural and smooth, and present a softer and more realistic picture effect.

( 2 ) High efficiency printing.

Significantly improving printing speed:

The dual print head configuration greatly enhances printing efficiency. On the premise of ensuring high-quality printing, the printing speed is significantly improved compared to single head printers. In daily production, more printing tasks can be completed per hour, greatly shortening the order delivery cycle and improving the production efficiency and market competitiveness of the enterprise. ​

Stable continuous printing performance:

The stable mechanical structure and optimized control system ensure the stable operation of the printer during long-term continuous printing processes. The key components such as the double print head and motor can work continuously and efficiently, avoiding overheating, lagging and other problems, ensuring the smooth progress of printing tasks, reducing downtime caused by equipment failures, and providing strong support for large-scale production.

( 3 ) Efficient printing.

Faster printing speed:

With the premise of ensuring high-quality printing, it has a relatively fast printing speed. Its printing speed can meet daily production needs and effectively improve work efficiency.

Good stability in continuous printing:

The stable mechanical structure and control system ensure the stability of the printer during long-term continuous printing processes. The key components such as the print head and motor can operate continuously and efficiently, avoiding problems such as overheating and lagging, ensuring the smooth progress of printing tasks, reducing downtime caused by equipment failures, and improving production efficiency.

FAQ

Q：What should I do if the print head of the printer is blocked?

A：The printer is equipped with an automatic cleaning and ink scraping system. When there is a slight blockage in the print head, the automatic cleaning function can be activated through the printer's control panel. This function uses cleaning solution to clean the print head and usually solves the blockage problem. If the blockage still cannot be resolved after automatic cleaning, it may be due to severe blockage of the print head. In this case, we need to contact our after-sales technical personnel for handling. After sales technicians will use more professional cleaning methods, such as soaking and cleaning with specialized print head cleaning solution. It is not recommended for users to disassemble the print head for cleaning on their own to avoid damaging the print head.

Q：Can it be printed on media of different thicknesses?

A：This printer can print on media within a certain thickness range. When printing media of different thicknesses, it is necessary to adjust the relevant parameters of the printer appropriately according to the thickness of the media, such as the height of the print head, pressure, etc., to ensure that the appropriate distance is maintained between the print head and the media, and to ensure the printing effect. The specific adjustment method can refer to the printer's operation manual or consult the after-sales technical personnel.

Q：How long is the warranty period for the printer?

A：In general, the entire printer comes with a one-year warranty service, and core components such as print heads, motors, control systems, etc. are also covered by a one-year warranty. During the warranty period, if the equipment malfunctions due to non-human factors, the manufacturer will provide free repair services. However, it should be noted that users should operate and maintain the equipment correctly according to the printer's user manual, otherwise it may affect warranty rights. If the device exceeds the warranty period, users can still contact after-sales technicians for repairs, but they will need to pay the corresponding repair fees.
