3.2m inkjet printer(2pcs)
- Printhead: I3200/i1600, xp600
- Quantity of printhead: 1pc
- Max printing width: 1800mm
- Printing speed: 3 pass 30m2/h 4 pass 22m2/h 6 pass 16m2/h, 4 pass 12m2/h 6 pass 10m2/h
- Ink type: 13200 water-base/eco solvent
- Ink supply: 1.5LBulkink supply
- Printing height: 15mm-3mm adiustable
- Media weight: 75KG
- Overview
- Recommended Products
Description

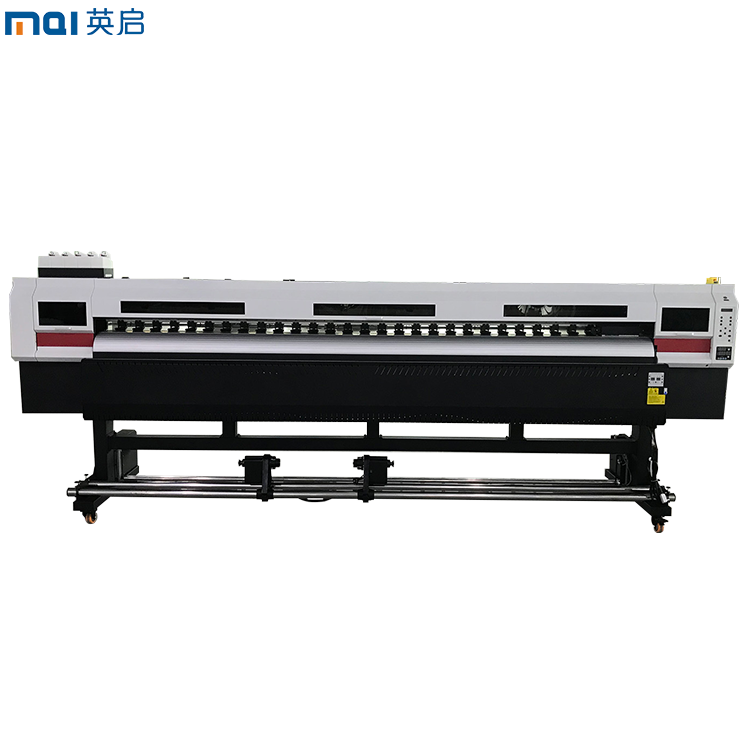

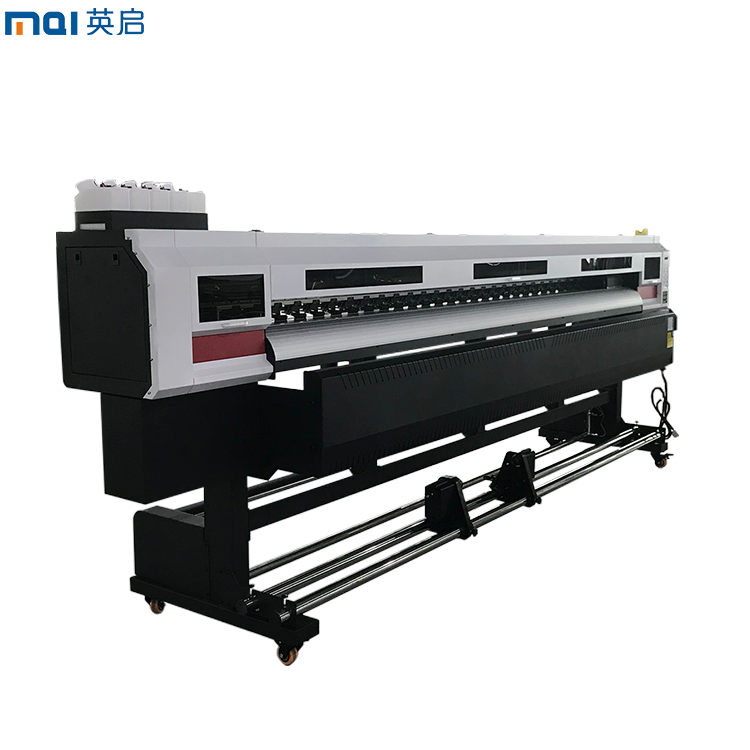

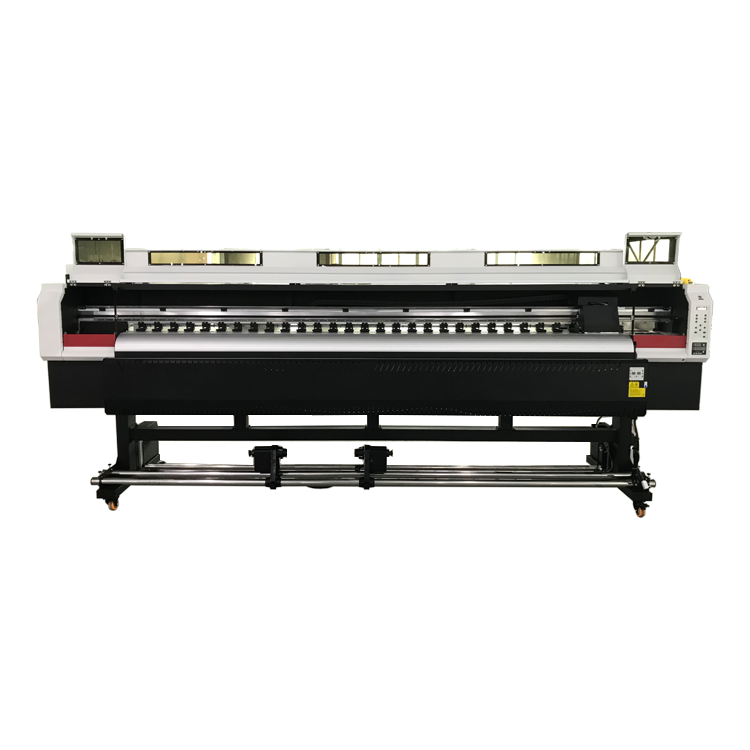

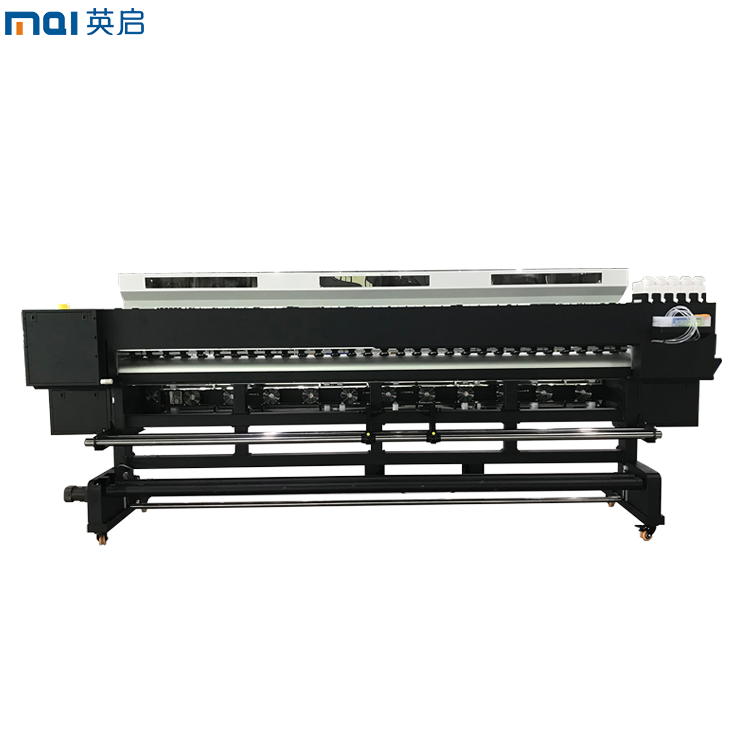

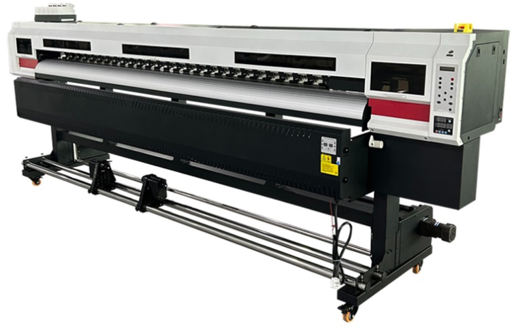

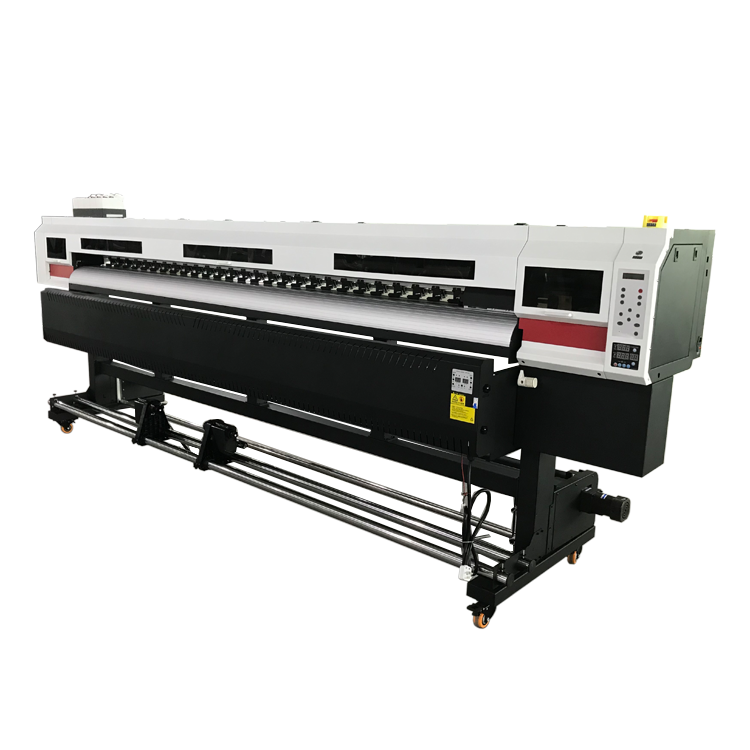

The 3.2m weak solvent printer with 2pcs XP600 print head(or i3200-E1 print head) is a professional printing equipment that combines excellent performance and wide applicability.
Its core component XP600 print head(or i3200-E1 print head), with 1440dpi ultra-high resolution and precise control of ink droplets, can present delicate textures of outdoor advertisements or tiny text on indoor display boards clearly. Paired with weak solvent ink, it has bright colors and a wide color gamut, bringing stunning visual effects.
This printer has extremely strong media compatibility, covering common materials such as PP adhesive and photo paper, outdoor special materials such as lamp cloth and car stickers, as well as special materials such as flag cloth and rice paper. It is widely used in advertising production, artistic creation, textile printing and other fields.
Specifications
Model |
3202Y |
|
Print head |
xp600 |
I3200/i1600 |
Print head quantity |
2pcs |
|
Max printing width |
3200mm |
|
Printing speed |
3 pass 34m2/h 4 pass 25m2/h 6 pass 18m2/h |
3 pass 64m2/h 4 pass 50m2/h 6 pass 34m2/h |
Ink type |
water-base/eco solvent ink |
|

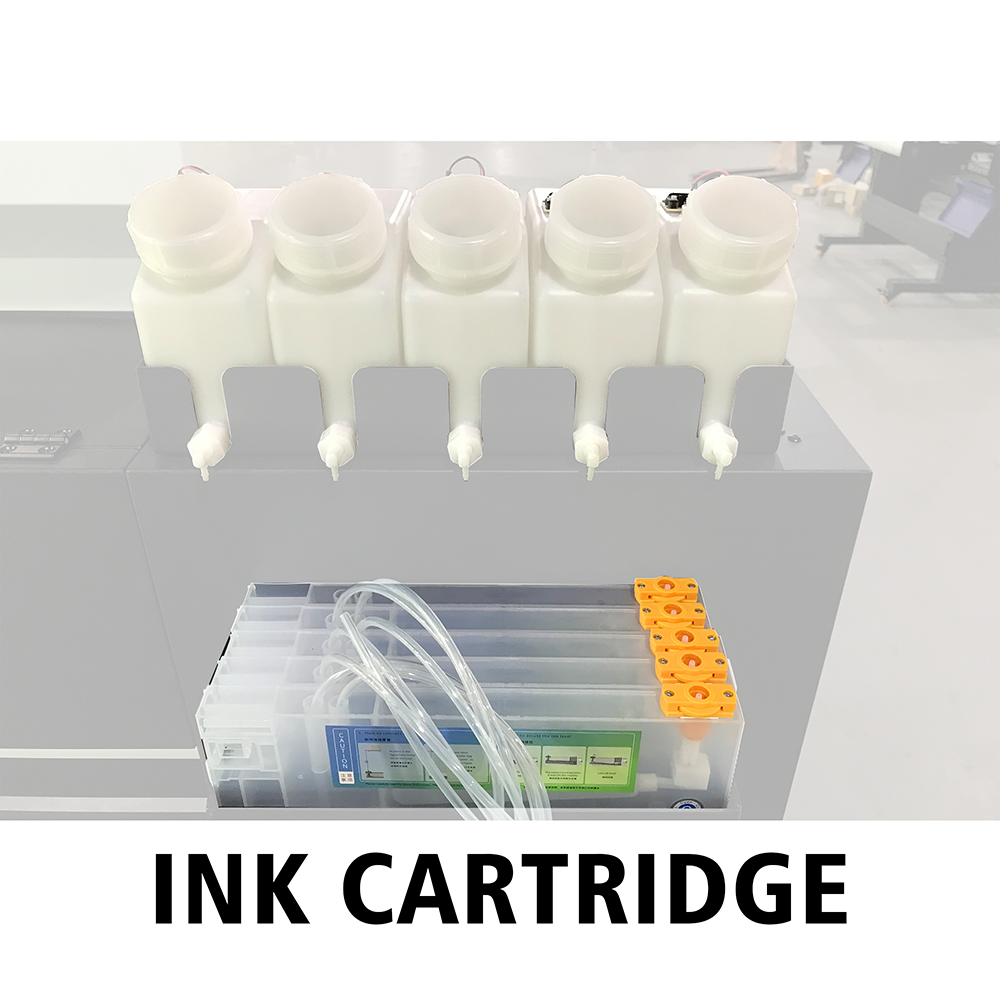

Ink supply |
1.5L Bulk ink supply |
|
Printing height |
1.5mm-3mm adjustable |
|
Media weight |
200KG |
|
Printing Material |
Leather, Canvas, Banner, PVC Vinyl, Photo Paper, Silk Fabric, etc. |
|
anti-collision sensor （a system that protects the head that stops when it hits the paper） |
√ |
|
Paper outage pause function |
√ |
|

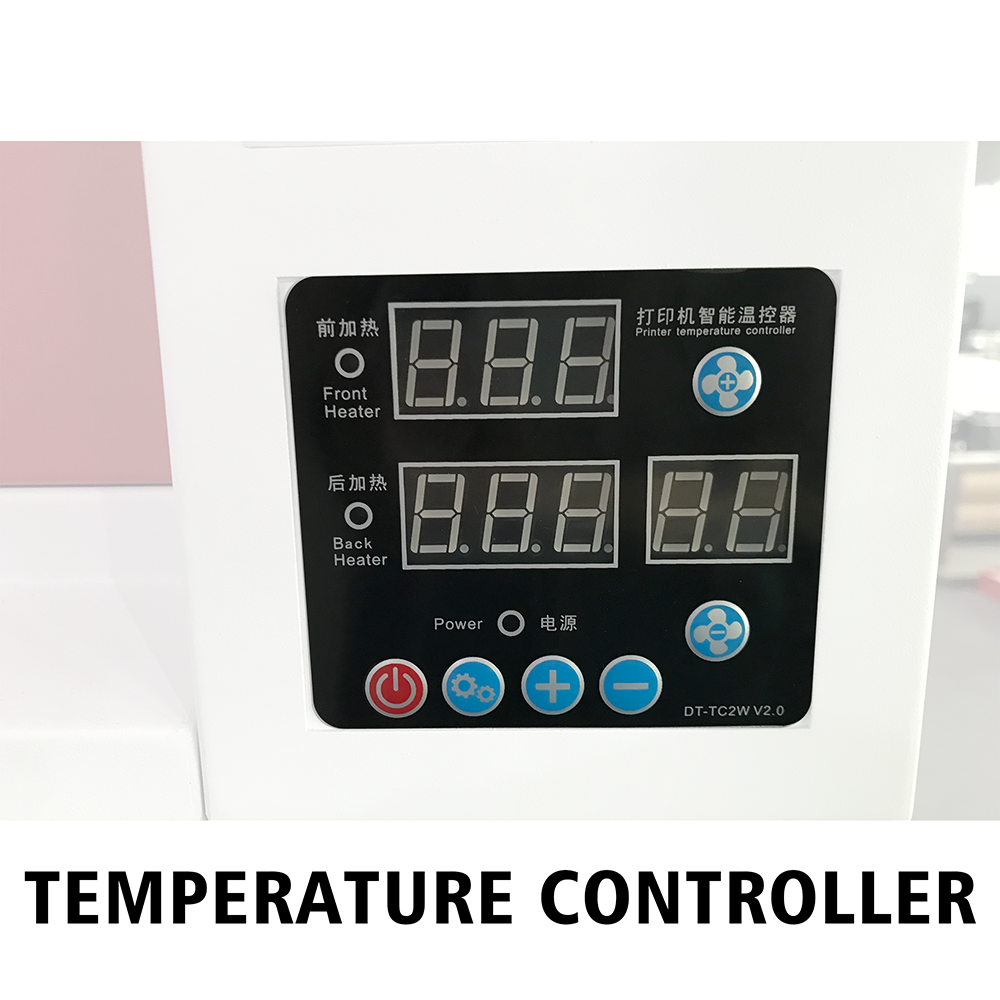

Automatic start/stop of the drying fan |
√ |
|
Platform heating |
Front and back heating |
|
Connecting port |
Gigabit network interface |
|
Takeup system |
Take up system with double motors |
|
Heatingsystem |
Intelligent drying and heating system |
|
software |
Maintop 6.1（can optional Photoprint） |
|
Machine power |
1200W |
|
Infrared heating power |
3000W |
|
Working environment |
Temperature: 20-35°C, Humidity: 35%Rh-65% |
|
Voltage specification |
AC110V士10% AC220V10% 50-60HZ |
|
Machine size |
L4260*W870*H1620 mm |
|
Box packaging size |
L4400*W1000*H750 mm |
|
Net weight |
450KG |
|
Gross weight |
500KG |
|
Applications
It is widely used in advertising production, artistic creation, textile printing and other fields.
Advantages
( 1 ) Excellent picture quality.
High resolution:
The printed images and text have clear and sharp edges, rich details, and can present both fine patterns and tiny text clearly, meeting the high quality requirements of users.
High color reproduction:
Accurately reproducing the colors of the original image, with high color saturation and appropriate contrast, the printed image is vivid and realistic in color, giving a strong visual impact.
Delicate color transition:
When printing gradient colors or images with rich color tone layers, it can avoid color discontinuity or stripe phenomenon, make color transition natural and smooth, and present a softer and more realistic picture effect.
( 2 ) Wide adaptability to various media.
Multiple common media:
It can be used for high-quality printing on commonly used indoor media such as PP backing adhesive, light film, photo paper, and removable backing adhesive, suitable for indoor advertising display, poster production, photo printing, and other scenarios.
Outdoor special media:
It can easily handle outdoor special media such as car stickers, light cloth, single hole transparent, knife scraping cloth, etc., while also having excellent waterproof, sunscreen, and weather resistance performance.
Special media:
such as flag cloth, heat transfer paper, pure cotton, wallpaper, oil painting cloth, rice paper, mesh cloth, leather, etc. This provides users with more creative space and application possibilities, meeting the personalized printing needs of different industries and fields.
( 3 ) Efficient printing.
Faster printing speed:
With the premise of ensuring high-quality printing, it has a relatively fast printing speed. Its printing speed can meet daily production needs and effectively improve work efficiency.
Good stability in continuous printing:
The stable mechanical structure and control system ensure the stability of the printer during long-term continuous printing processes. The key components such as the print head and motor can operate continuously and efficiently, avoiding problems such as overheating and lagging, ensuring the smooth progress of printing tasks, reducing downtime caused by equipment failures, and improving production efficiency.
FAQ
Q：What should I do if the print head of the printer is blocked?

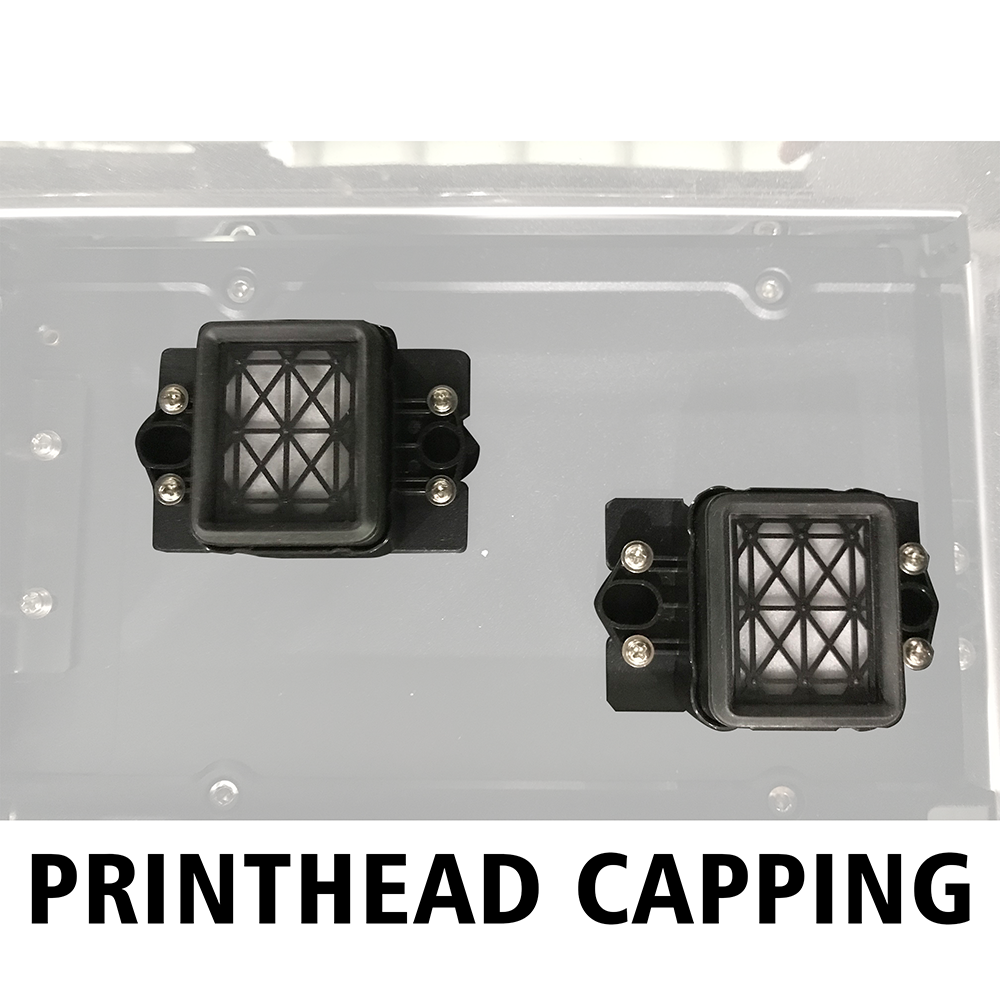

A：The printer is equipped with an automatic cleaning and ink scraping system. When there is a slight blockage in the print head, the automatic cleaning function can be activated through the printer's control panel. This function uses cleaning solution to clean the print head and usually solves the blockage problem. If the blockage still cannot be resolved after automatic cleaning, it may be due to severe blockage of the print head. In this case, we need to contact our after-sales technical personnel for handling. After sales technicians will use more professional cleaning methods, such as soaking and cleaning with specialized print head cleaning solution. It is not recommended for users to disassemble the print head for cleaning on their own to avoid damaging the print head.
Q：Can it be printed on media of different thicknesses?
A：This printer can print on media within a certain thickness range. When printing media of different thicknesses, it is necessary to adjust the relevant parameters of the printer appropriately according to the thickness of the media, such as the height of the print head, pressure, etc., to ensure that the appropriate distance is maintained between the print head and the media, and to ensure the printing effect. The specific adjustment method can refer to the printer's operation manual or consult the after-sales technical personnel.
Q：How long is the warranty period for the printer?
A：In general, the entire printer comes with a one-year warranty service, and core components such as print heads, motors, control systems, etc. are also covered by a one-year warranty. During the warranty period, if the equipment malfunctions due to non-human factors, the manufacturer will provide free repair services. However, it should be noted that users should operate and maintain the equipment correctly according to the printer's user manual, otherwise it may affect warranty rights. If the device exceeds the warranty period, users can still contact after-sales technicians for repairs, but they will need to pay the corresponding repair fees.
